MCG3022i

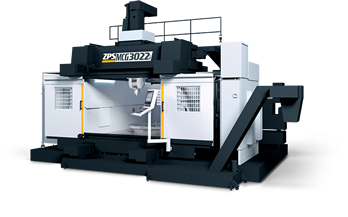

The gantry-type machining centers are highly productive machines with a wide range of application when machining complicated spatial shapes in three or five axes. Due to high dynamics, very high rigidity and damping characteristics of the machine structure, they enable utilization of HSC technology advantages. The gantry-type machines have their spindle mounted in a motor spindle unit built-in in the sliding ram. All movements of the machine are realized by linear guide-ways with rollers. Measuring of position in the X, Y and Z axes is carried out directly by linear scales.

MCG3022i video

STANDARD EQUIPMENT

OPTIONAL EQUIPMENT

» Double-axis CNC head
»HSK-T100 spindle for turning and milling operations
»C, Y axes clamping
» Workpiece probe
»Tool probe
»Turning head
»Mist extractor
»External oil mist cooling
»Spindle axis oil mist cooling
»Manual rinsing nozzle
»Extended capacity tool magazine
»Remote diagnostics


 Work Table

Work area

4,000 x 2,000

mm

Maximum load

15,000

kg/sq m

Table surface to spindle nose distance

520

mm

T-slot size, span, number of slots

22H12

mm

 Range of working travels

X axis

3,000

mm

Y axis

2,250

mm

Z axis

1,250

Mm

 Feeds in X, Y, Z axes

Rapid traverse

40/40/50

m/min

Max. working feed

40/40/50

m/min

Max. acceleration in axes

5

m/s²

 Spindle

Maximum speed

14,000

rpm

Max. power at S1 = 100% / S6 = 40%

25/37

kW

Max. torque at S1 = 100%

236

Nm

Rated speed

1,500

rpm

 Automatic tool changer

Clamping taper

HSK-A100

Tool maximum length

380/615

mm

Tool maximum diameter at fully occupied magazine

110/160

mm

Tool maximum weight

15

kg

Maximum number of tools

50

pcs

Tool interchange time

3,5

s

 Machine dimensions and weight

Height x width x length

6,775 x 9,315 x 5,300

mm

Weight without optional equipment

55,000

kg

 Control system

 Heidenhain i TNC530
